HAProxy on pfSense®

HAProxy is an high performance TCP/HTTP load balancer. With HA Proxy on pfSense® we can publish and balancing applications from our DMZ. We can use Let’s Encrypt certificates centrally in pfSense® without load it on each servers, this permit to automatically renew each certificate form pfSense®.

Scenario

For this tutorial we will configure HAProxy to publish two Apache virtualhosts through a WAN CARP ip address of our pfSense® HA system.
This two virtualhost will be balanced in two different servers in HTTPS.
The x 509 certificates will reside only in pfSense®, HAProxy will put in the middle and will open a crypted connection with client and one not crypted with server.

Planning

Here we need to decide the FQDN for the servers and virtualhosts.

Servers

Server

IP Address

web1.oneos.it

192.168.34.100

web2.oneos.it

192.168.34.101
VirtualHosts

FQDN

CARP IP

bc.oneos.it

203.0.113.254

docs.oneos.it

203.0.113.254

Attention

Virtualhost FQDN must be registered on DNS authoritative for domain oneos.it

To make a test we need two index.php that identify the server where the page reside.
This pages will load in every webroot directory of the virtualhosts one for web1.oneos.it and one for web2.oneos.it

1<html>
2 <head>
3  <title>WEB1.ONEOS.IT</title>
4 </head>
5   <body>
6     <h1 style="color: red;">I'm <?php echo $_SERVER[SERVER_NAME]; ?> on web1.oneos.it server</h1>
7   </body>
8<html>

1<html>
2 <head>
3  <title>WEB2.ONEOS.IT</title>
4 </head>
5   <body>
6     <h1 style="color: blue;">I'm <?php echo $_SERVER[SERVER_NAME]; ?> on web2.oneos.it server</h1>
7   </body>
8<html>

Prerequisites

We assume that the two servers are already configured to publish virtualhosts in HTTP only and with working PHP module, if not, you can read this tutorial: Apache Virtualhosts.

For publish these sites in HTTPS we need to obtain valid certificates, for this tutorial we will use ACME for request to Let’s Encrypt.
You can view how to obtain valid certificates from Let’s Encrypt here: Let’s Encrypt on pfSense.

Installation Basics

In pfSense® it’s possible to install HAProxy using the Package Manager utility. Go to System → Package Manager → Available Packages and install the haproxy package.

HA Proxy Configurations

There is a tab called Templates. In this page there are some template for easy configure exactly this scenario, and other things, we do not use it because we need to learn how HAProxy works.

We configure first Beckend section, Frontend and finally we will active HAProxy on Sectings section.

Backend

Go to Services → HAProxy → Bakend tab.
On Backend tab will add a server pool for each virtualhost
Click button to configure first virtualhost bc.oneos.it.

Backend - bc.oneos.it

Name:

bc.oneos.it

Server list:

In the Table click on down arrow to add a server.

Mode:

active

Name:

web1

Forwardto:

Address-Port

Address:

192.168.34.100

Port:

80

Encrypt(SSL):

uncheked

CA: Acmecert: O=Let’s Encrypt, CN=R3, C=US (CA: Acmecert: O=Internet Security Research Group, CN=ISRG Root X1, C=US) [Server cert]

Client Certificate: bc.oneos.it (CA: Acmecert: O=Let’s Encrypt, CN=R3, C=US) [Server cert]

Note

Repeat for all servers in a pool.

Server list:

In the Table click on down arrow to add a server.

Mode:

active

Name:

web2

Forwardto:

Address-Port

Address:

192.168.34.101

Port:

80

Encrypt(SSL):

uncheked

CA:

Let’s Encrypt

Client Certificate:

bc.oneos.it

Loadbalancing Options (when multiple servers are defined)

Round Robin

Click

The first virtualhost beckend was finishd.

Backend - docs.oneos.it

Click button to configure the second virtualhost docs.oneos.it

Name:

docs.oneos.it

Server list:

In the Table click on down arrow to add a server.

Mode:

active

Name:

web1

Forwardto:

Address-Port

Address:

192.168.34.100

Port:

80

Encrypt(SSL):

uncheked

CA:

Let’s Encrypt

Client Certificate:

docs.oneos.it

Note

Repeat for all servers in a pool.

Server list:

In the Table click on down arrow to add a server.

Mode:

active

Name:

web2

Forwardto:

Address-Port

Address:

192.168.34.101

Port:

80

Encrypt(SSL):

uncheked

CA:

Let’s Encrypt

Client Certificate:

docs.oneos.it

Loadbalancing Options (when multiple servers are defined)

Round Robin

Click

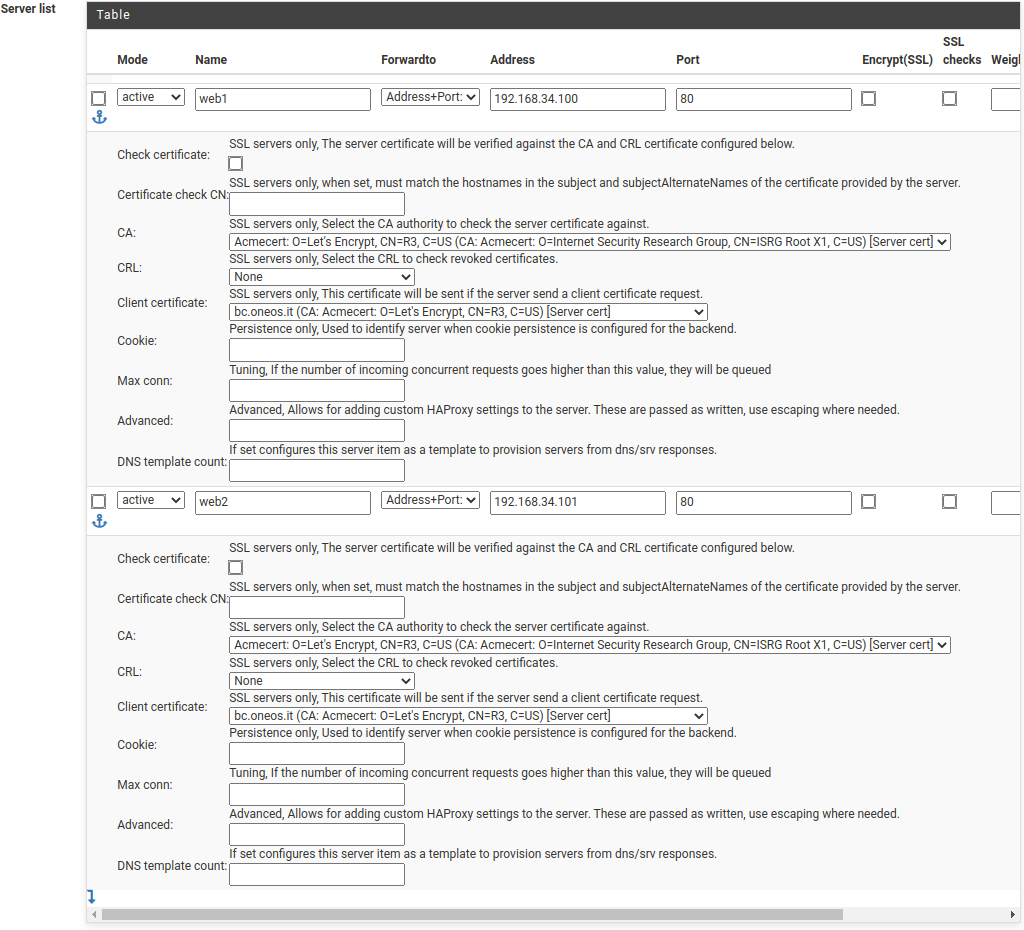

The result of Server list must be the same here.

Backend bc.oneos.it

Backend bc.oneos.it

All virtualhosts was completed, now we need to configure the HAProxy frontend.

Frontend

Go to Frontend tab and click Add.

For this tutorial we need 5 different frontend, two to hook to the beckends and the other three as explaned below.

https_shared:

This is the SSL termination, all request to applications will pass to this frontend and will perform encryption and dectryption of all traffic between client and servers. This type of frontend will use to put the virtualhosts on the same frontend ip addreess like CARP IP or Ip Alias.

http_deny:

This is a rule that block all request without a domain name, for example with ip address with HTTP status 403 (forbidden).

http_redirect:

All traffic to port 80 (HTTP) will be redirect to port 443 (HTTPS).

Click

Frontend - https_shared

Name:

https_shared

External address:

In the Table

Listen address:

203.0.113.254 (WAN CARP Gateway)

Port:

443

SSL Offloading

checked

Type:

http/https(offloading)

Separate sockets:

checked

Certificate:

bc.oneos.it

Add ACL for certificate Subject Alternative Names:

checked

Additional certificates:

In the Table click on down arrow to add a server.

Certificates:

docs.oneos.it

Add ACL for certificate Subject Alternative Names:

checked

Note

Additional certificates - you will must add here every new virtualhost.

Click

Click

Frontend - bc.oneos.it

Name:

bc.oneos.it

Satus:

Active

Shared Frontend:

checked

Primary Frontend:

https_shared - http

Access Control lists:

In the Table click on down arrow to add a server.

Name:

bc

Expression:

Host contains:

Value:

bc.oneos.it

Actions:

In the Table click on down arrow to add a server.

Action:

Use Backend

Condition acl names:

bc

Backend:

bc.oneos.it

Click

Click

Frontend - docs.oneos.it

Name:

docs.oneos.it

Satus:

Active

Shared Frontend:

checked

Primary Frontend:

https_shared - http

Access Control lists:

In the Table click on down arrow to add a server.

Name:

docs

Expression:

Host contains:

Value:

docs.oneos.it

Actions:

In the Table click on down arrow to add a server.

Action:

Use Backend

Condition acl names:

docs

Backend:

docs.oneos.it

Click

Frontend - http_deny

Name:

http_deny

Status:

Active

Shared Frontend:

checked

Primary frontend:

https_shared - http

Access Control lists:

In the Table click on down arrow to add a server.

Name:

not_domain

Expression:

Host contains:

Not:

checked

Value:

oneos.it

Actions:

In the Table click on down arrow to add a server.

Action:

http-request deny

Condition acl names:

not_domain

Click

Click

Frontend - http_redirect

Name:

http_redirect

Status:

Active

Shared Frontend:

unchecked

External adress:

In the Table click on down arrow to add a server.

Listen address:

203.0.103.254 (WAN CARP Gateway)

Port:

80

Actions:

In the Table click on down arrow to add a server.

Action:

http-request redirect

rule:

scheme https

Click

Settings

Go to Settings tab.

Check Enabel HAProxy.

Maximum connections:

1000

Carp monitor:

203.0.113.254 (WAN CARP Gateway)

Internal stats port:

2200

HAProxy Sync:

checked, this is for pfSense® HA systems, will syncronize configuration with Secondary pfSense®.

Click

Firewall Rules

For publish the virtualhosts it’s necessary to make a rule on WAN interface that open the HTTP and HTTPS ports on CARP WAN Gateway.
Go to Firewall → Alias and make an alias for HTTP and HTTPS ports. Click on .

Name:

HTTP_PORTS

Descriptions:

HTTP and HTTPS ports

Type:

Port(s)

Port:

80 - port 80
click on
443 - port 443

Gp to Firewall → Rules → WAN and click on

Action:

Pass

Interface:

WAN

Address Family:

IPv4

Protocol:

TCP

Source:

any

Destination:

This firewall (self)

Destination Port Range:

other

Custom:

HTTP_PORTS

Click

Click

Verifing HAProxy

We will make some tests.

HAProxy Stats

In the tab Stats there are some useful statistics, and in a tab Stats FS there is a link on the same statistic page without user login.
The link is https://PFSENSEADMINPAGE:PORT/haproxy/haproxy_stats.php?haproxystats=1.
